HMP LFG4 compaction meter (dynamic plate load tester)
SKU HMP LFG4
€3.950,00
VAT Exc
€4.779,50
VAT Inc
Availability:
Low stock
Standard delivery
Delivery usually takes 3–5 business days.
For some products, delivery may take up to 7 business days
Shipping from €3.63. Free for orders of €300 and over

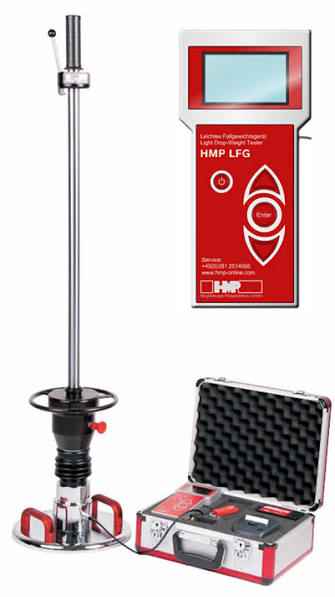

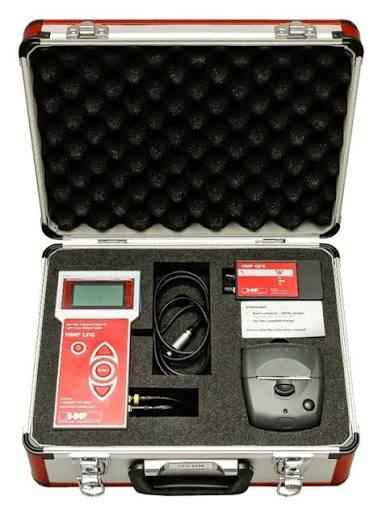

Device designed for measuring the compaction degree of soil and base layers at construction sites. The set includes a measuring instrument, printer, GPS, and carrying case.
- Measurement data displayed on screen, capacity of up to 500 measurements, Bluetooth interface
- Deformation modulus Evd < 225 MN/m²
- Loading plate Ø300mm (thickness 20mm), impact element weight 10 kg
- Power supply – 4x R6 batteries (up to 1000 measurements)
Additional description
Technical specifications
| Tool type | Light Weight Deflectometer (dynamic plate loading tester) |
| Intended use | Measurement of the degree of compaction of soil and base layers in construction |
| Accessories | Printer, GPS, suitcase (included) |
| Weight | 10.0 kg (striker weight) |
| Diameter | 300 mm (load plate) |
| Performance | Deformation modulus Evd < 225 MN/m², max. impact force 7.07 kN, impact duration 17.0±1.5 ms, plate thickness 20 mm |
| Power supply | 4x R6 batteries (up to 1000 measurements) |
