Takeuchi TB225A – compact mini excavator
€49.610,00 VAT Inc

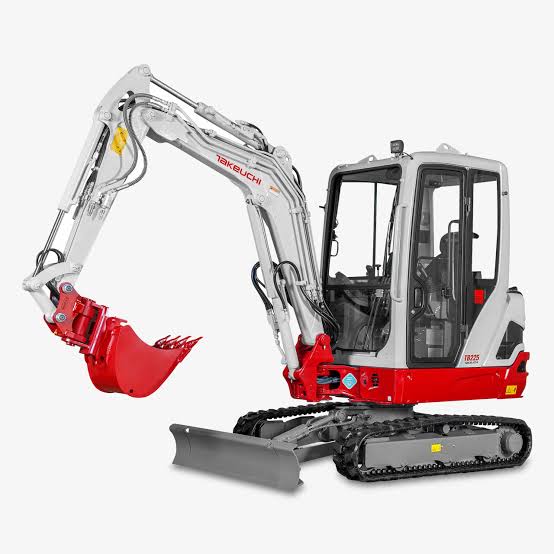

The Takeuchi TB225A is a ~2.4-ton class mini excavator with a unique hydraulically extendable undercarriage (1100–1500 mm), allowing for a combination of compactness during transport and stability during operation. It is powered by a Yanmar 3TNV82A diesel engine (16.5 kW / 22.5 HP).
Four hydraulic pumps for direct function control, "Servo" control, and automatic "turret" locking ensure smooth and precise operation. Additional equipment includes a hydraulic quick coupler, an emergency shut-off valve with an overload warning system (according to EU EN474-5 standard), and a Powertilt 174° system with a lifting hook.
The comfortable ROPS/TOPS cabin with a radio, LED work lights, and loading/unloading hooks on the cabin roof is designed for convenient use and transport. There are even 8 lashing points for securing during transport.
Key advantages:
- Yanmar 3TNV82A, 16.5 kW / 22.5 HP
- Hydraulically extendable undercarriage 1100–1500 mm
- 4 hydraulic pumps, Servo control
- Optional: Lehnhoff HS03 quick coupler + Powertilt 174°
- ROPS/TOPS cabin, LED lights
- 24-month warranty
For orders and delivery times, please contact us by email at shop@kurt-koenig.lt or by phone at +370 659 19826.
Additional description
Technical specifications
| Intended use | Excavation and loading works in confined spaces where transport compactness and operational stability are required |
| Accessories | Additional equipment: Lehnhoff HS03 hydraulic quick coupler + Powertilt 174° system with loading hook, digging buckets 30/50 or 60/120 cm, dozer blade 1100–1500mm/300mm, toolbox with tools |
| Weight | 2,435 kg |
| Working width | 1100–1500 mm |
| Fuel type | Diesel |
| Power | 16.5 kW / 22.5 HP |
| Voltage | 12V |
