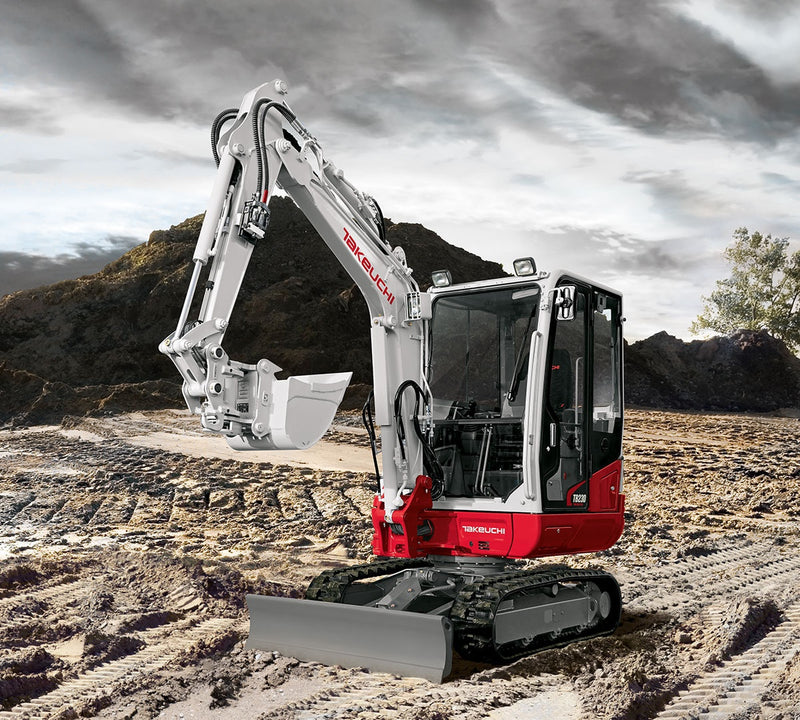

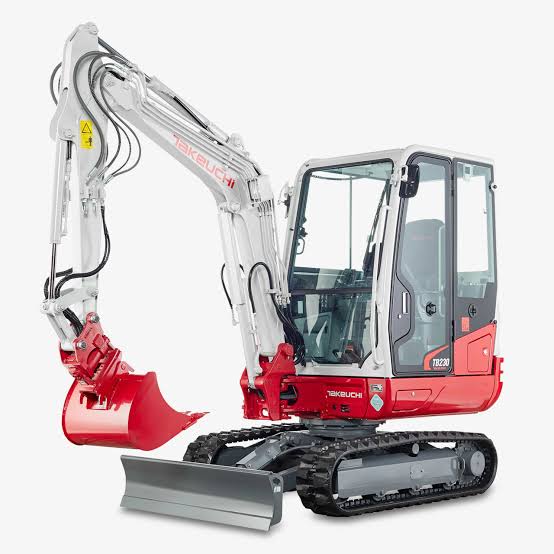

Takeuchi TB230 – compact mini excavator
€59.290,00 VAT Inc
The Takeuchi TB230 – a ~2.9-ton class mini excavator featuring a narrow body and excellent accessibility in confined spaces. Powered by a Yanmar 3TNV88 diesel engine (18.2 kW / 24.7 HP). Four hydraulic lines with proportional control (4th line – for the Powertilt system) ensure wide attachment compatibility.
"Servo" control, automatic gear shifting (rabbit/turtle) depending on the load, and automatic "turret" locking facilitate daily use. The emergency shut-off valve with an overload warning system complies with the EU EN474-5 safety standard.
The comfortable ROPS cab with a radio, 4 work lights, and a reinforced cab counterweight is designed for comfortable and stable operation. Standard equipment includes a Lehnhoff HS03 hydraulic quick coupler with a Powertilt 174° system and a lifting hook.
Key advantages:
- Yanmar 3TNV88, 18.2 kW / 24.7 HP
- Narrow body – convenient in confined spaces
- 4 hydraulic lines, Servo control
- Lehnhoff HS03 quick coupler + Powertilt 174° included
- ROPS cab, reinforced counterweight
- Warranty 24 months or 2000 operating hours
For ordering and delivery times, please contact us by email at shop@kurt-koenig.lt or by phone at +370 659 19826.
Additional description
Technical specifications
| Tool type | Mini excavator |
| Intended use | Excavation and loading works in confined spaces – narrow streets, between buildings, in utility networks |
| Accessories | Standard equipment: Lehnhoff HS03 hydraulic quick coupler + Powertilt 174° system with loading hook, digging buckets 30/60/120 cm, bulldozer blade 1450mm/355mm, toolbox with tools |
| Weight | 2,950 kg |
| Length | 4.59 m |
| Width | 1.46 m |
| Height | 2.54 m |
| Working length | 4,850 mm |
| Dimensions | 4.59 x 1.46 x 2.54 m |
| Digging depth | 2830 mm |
| Fuel type | Diesel |
| Power | 18.2 kW / 24.7 hp |
| Voltage | 12V |
